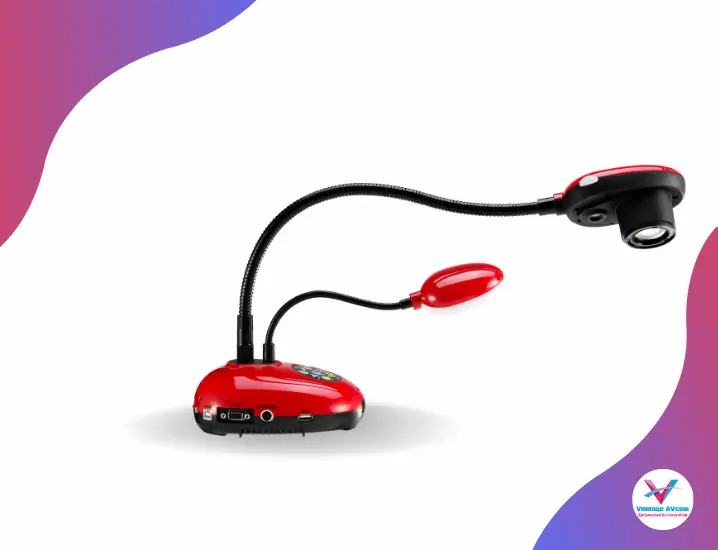

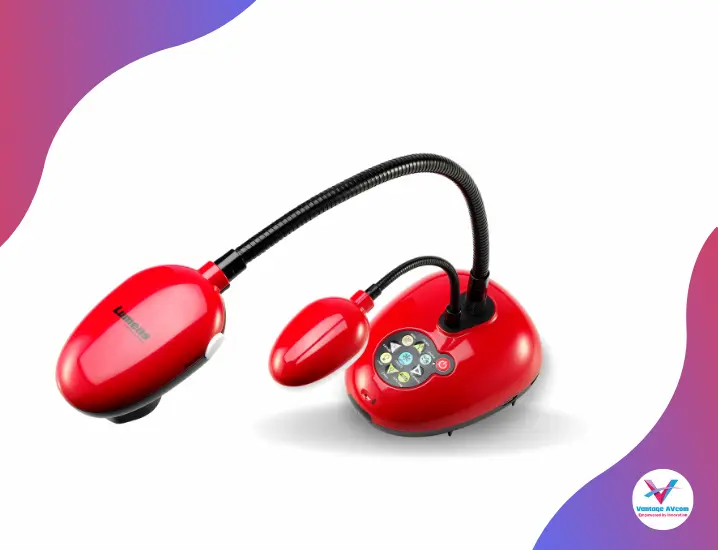

Lumens DC193 Visualiser - 20x, 1080p with 30fps, HDMI, USB, with Flexible Gooseneck Arm
- Full HD 1080p Output Resolution with 30fps
- 20x Optical Zoom
- One-touch synchronous audio/video recording
- Full HD 1080p Output with 30fps
- Supports USB flash drives, expandable up to 4TB.
- Jointless, highly flexible gooseneck
- Plug & Play, works with all major whiteboard brands.
- Rigid lens protects against improper use.
- 5 year warranty
Lumens DC 193 Visualiser – Enhance Learning and Presentations
The Lumens™ DC193 document camera delivers exceptional clarity with its powerful 20x zoom and professional image sensor, producing vivid, true-to-life colors in Full HD 1080p at a fluid 30 frames per second for real-time, seamless streaming.
Built for convenience, it includes internal storage for up to 240 images and supports USB flash drives up to 4TB, ensuring more than enough space for your content. Its one-touch recording function enables standalone video capture, making it possible to present without the need for a computer.
The jointless, highly flexible gooseneck provides a full 360° viewing range, allowing close-up inspection from as little as 3 cm (1.2 inches) away. An adjustable side lamp minimizes glare and reflections, while the auto-tune button instantly optimizes image quality for every session.
With its advanced imaging capabilities and versatile design, the Lumens DC193 is a high-definition multimedia document camera that elevates presentations, enriches classroom interactivity, and enhances engagement in any teaching or meeting environment.
Visualiser Key Features
Excellent Image Quality
Lumens DC193 captures documents and 3D objects for live HD display on projectors and monitors. Featuring VGA and HDMI outputs, the visualizer supports resolutions up-to 1080 and produces sharp, vivid and bright images. With a built-in power adapter and onboard recording, DC193 can be used as a standalone document camera, without the need for a host computer or network connection.
Standalone Creativity
Most document cameras require a PC for annotation and live graphic overlay. By connecting a USB mouse to the unit, users have access to a range of drawing, highlighting, and masking tools which will enhance any live presentation.
Expandable Media Storage
The DC193’s internal image store can be expanded using a USB flash drive up-to a maximum 4TB. Files stored locally can be played out to screens, or shared with colleagues for playback on any computer or smart device.
Computer Integration
Connect DC193 to a PC via USB to enjoy even greater creativity. Lumens Ladibug software for PC and Mac brings advanced annotation tools to desktop computers. Users can add text, spotlight and erase regions of an image, and much more. Connecting the camera to a computer by USB also turns DC193 into a webcam, recognized by all major video conferencing software, such as Teams, Zoom, and Webex. The high-quality camera and in-built microphone combine to deliver a truly versatile collaborative communication tool.
Picture Perfect
With an adjustable lamp and the camera mounted on a flexible gooseneck, users can capture the image they want, without distracting reflections or uneven lighting. Once the camera and light are perfectly positioned, the one-click Auto-Tune button quickly adjusts the clarity, brightness, and color to produce great-looking pictures without any user input.
Lumens DC193 Technical Specifications
|
PARAMETER
|
VALUE
|
|---|---|
|
Image Sensor
|
1/3 CMOS Color Image Sensor
|
|
Total pixels
|
3.25MP
|
|
Optical Zoom
|
20x
|
|
Digital Zoom
|
12x
|
|
Mechanical Zoom
|
10x
|
|
Close-up
|
0.78" (2cm)
|
|
Output Resolution
|
XGA, SXGA(1280x960), WXGA, 1080p
|
|
High Color Reproduction
|
ΔE*ab (mean): 14.8
|
|
SNR
|
51dB
|
|
Sharpness
|
MTF 937 line
|
|
Frame Rate
|
30fps
|
|
Lamp
|
LED side lamp supported by gooseneck
|
|
Power Supply
|
Internal Power Supply, 100-240VAC
|
|
USB Image Transmission
|
USB 2.0 (480 Mbps) high speed transmission
|
|
Video/Audio Recording
|
One touch button records image and sound synchronously
|
|
Built-in Microphone
|
Yes
|
|
Image Capture
|
Single or continuous capturing
|
|
Auto Tune
|
Yes, one button for optimization image
|
|
Image Rotation
|
0 ̊, 180 ̊, flip, mirror
|
|
Anti-Theft
|
Kensington anti-theft lock device
|
|
Free Software
|
Supports PC Windows 10, 8, 7, XP, Vista and Mac OSX, Chrome OS ; iOS, Android APP ; WIA & TWAIN interface
|
|
Included Accessories
|
Power cable, VGA cable, USB cable, remote control, microscope adapter
|
Download Brochure
