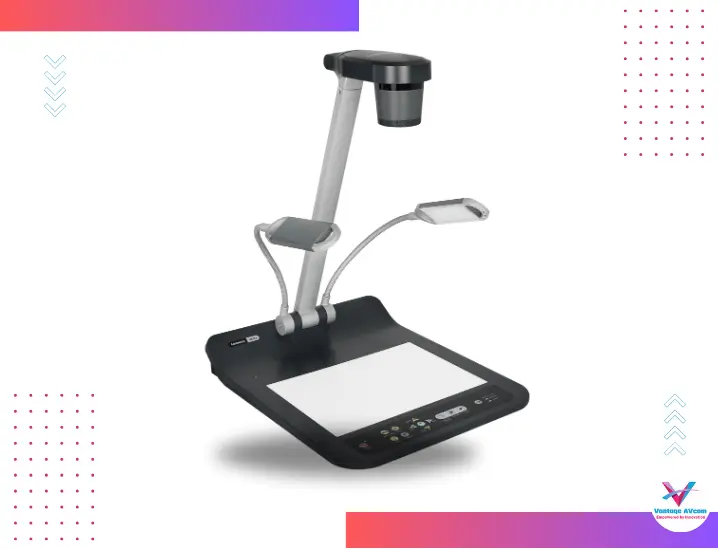

Lumens PS753 4k Desktop Document Camera - 4K Resolution, 300x Zoom, 30fps/60fps, 1/2.8" 8M CMOS Sensor
- 4K Resolution with 300x zoom
- Supports HDMI, VGA, Ethernet, and USB output
- Shooting area (20.5" x 12.1") larger than A3
- Supports USB flash drives, expandable to 4TB
- Dual gooseneck side lamps for anti-reflection
- HDMI pass-through up to 4K resolution
- Full sized built-in LED backlight design for X-rays, film, and slides

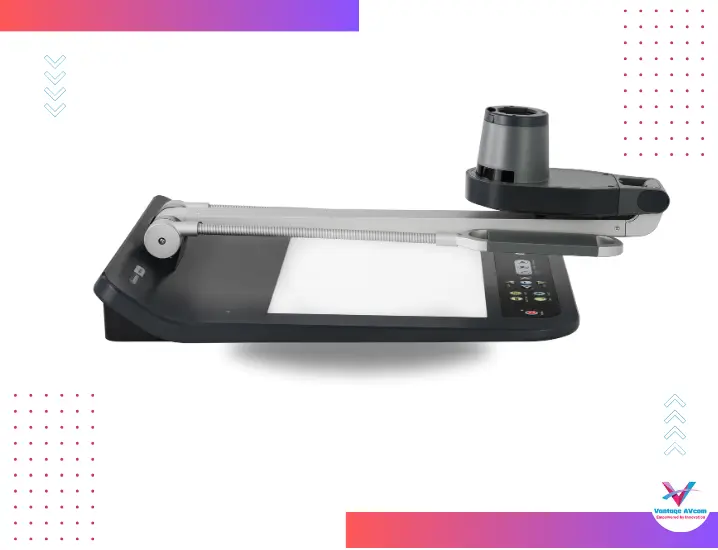

- Folds down to a height of six inches (15 cm)
- 5 year warranty
Lumens PS753 4K Document Camera – Improve Learning and Presentations
Experience the Lumens PS753 — a high-performance desktop document camera designed to redefine zoom capabilities with an extraordinary 300x magnification. Equipped with a professional Sony imaging sensor, it delivers exceptional detail, vibrant colors, and remarkable clarity, whether capturing flat documents or intricate 3D objects. Offering versatile connectivity through HDMI, VGA, USB, and IP outputs, the PS753 integrates seamlessly with computers, displays, and networks. Perfect for lecture halls and professional presentations, it ensures uncompromising image quality. From projecting on massive screens to revealing the finest details, this camera sets the benchmark for resolution and precision.
Lumens PS753 4K Desktop Document Camera Features
Superior Image Quality
With a 4K camera and powerful zoom, the PS753 delivers remarkably detailed images to screens and projectors.
The high-performance Sony sensor faithfully reproduces textures and colors in real-time, with excellent control over image noise.
Multi-Angle Lighting
The Lumens PS753 has dual lights on adjustable gooseneck mounts: any object is perfectly lit from above without glare or reflections. It also has a backlit LED light under the display area, making the visualizer ready to illuminate photo negatives and X-rays from below.

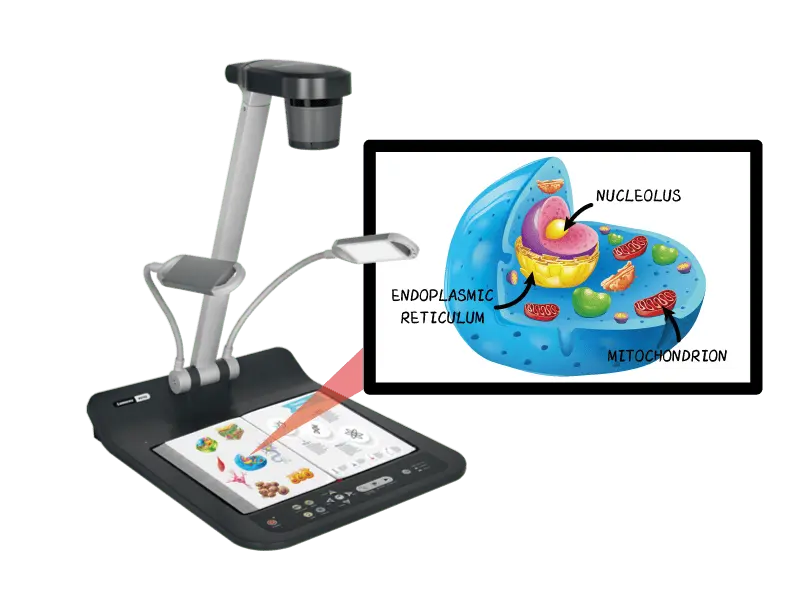

Wide Shooting Area
Lumens PS753 is extremely versatile, capable of reproducing documents and objects larger than A3 in size (over 20.5″ x 12.1″ / 50cm x 30cm). This gives presenters and demonstrators the flexibility that less powerful visualizers cannot match. Where the operator needs a close-up shot, the 300x zoom can capture the finest detail. For maximum versatility, the ePTZ functionality changes the camera angle and position to focus on a specific part of the object. This gives you the precise image you need every time.
Easy to Use
Despite its advanced features, Lumens PS753 is very easy to use. The Auto-Tune immediately calibrates the camera to deliver a perfectly focused image with accurate colors. The annotation tool allows the user to draw over the image on the screen without installing any additional software. It’s fast, convenient, and simple to use. Use the included Ladibug software for advanced image control and connect to remote guests using your favorite conferencing platforms, such as Zoom, Meet, Skype, Teams, or WebEx.
Fast Installation
The PS753 is very easy to install. Power is provided over your Ethernet network (PoE) without additional power supplies. The system can output live pictures over a connection that suits the way you work: it links directly to a display or projector over HDMI or VGA or streams images over your network.
Lumens PS753 Technical Specifications
|
PARAMETER
|
VALUE
|
|---|---|
|
Image Sensor
|
1/2.8" 8M CMOS
|
|
Total pixels
|
8.6 MP
|
|
Optical Zoom
|
30x
|
|
Digital Zoom
|
30x (max.)
|
|
Total Zoom
|
300x (max.)
|
|
Frame Rate
|
30fps for All Resolution
60fps for 1080p and 720p
|
|
Output Resolution
|
XGA / 720p / 1080p / 2160p
|
|
Shooting Area Max.
|
522 x 308 mm (20.5" x 12.1")
|
|
USB Host
|
USB 2.0 Type-A x1
(For Mouse, USB Flash Drive)
|
|
Sharpness
|
MTF 1700 lines (at 2160p)
|
|
Control
|
RS-232 / USB / Ethernet
|
|
Lamp
|
1. Dual LED Side Lamps
2. Built-in LED Backlight
|
|
Power Supply
|
External, 12V DC Adapter (100~240 VAC) / PoE+
|
|
USB Image Transmission
|
USB 2.0 (480 Mbps)
|
|
Standalone AV Recording
|
Yes, H.264 1080p
|
|
Built-in Microphone
|
Yes
|
|
Image Capture
|
Single or continuous capturing
|
|
Auto Tune
|
Yes, one button for optimization image
|
|
Image Rotation
|
0° / 90° / 180° / 270° / Flip / Mirror
|
|
Anti-Theft
|
Kensington anti-theft lock device
|
|
Free Software
|
Supports PC Windows 10, 8, 7, XP, Vista and Mac OSX, Chrome OS ; iOS, Android APP ; WIA & TWAIN interface
|
|
VESA Mount
|
Yes, 75mm x 75mm
|
|
Onboard Annotation
|
Yes, Supports USB Mouse
|
|
IP Stream Format
|
RTSP (H.264)
|
|
Audio In, Audio Out
|
Built-in Mic, Line In (3.5mm), Line Out (3.5mm)
|
|

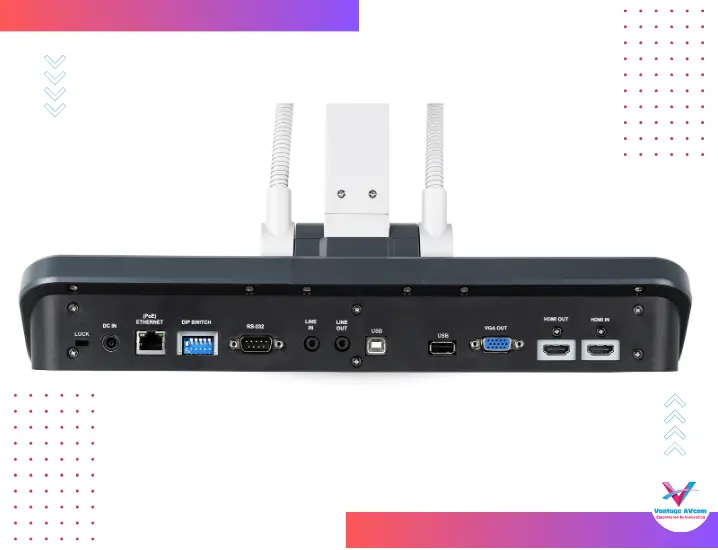

Input
|
HDMIx1 (Support 4K), HDMI Pass-Through
|
|
Output
|
HDMI x1 / VGA x1(up to 1080p) /
USB 2.0 / IP Streaming
|
|
Ethernet
|
RJ-45 ( PoE+, IEEE802.3at)
|
|
Memory Slot
|
USB 2.0 Flash Drive, Expandable to 4TB
|
|
Auto Tune, Freeze, Pan
|
Yes
|
|
Mask / Spotlight
|
Yes
|
|
Image Mode
|
Photo / Text / Film / Slide / Microscope
|
|
Picture in Picture (PIP)
|
Yes
|
|
Auto Erase
|
Yes
|
|
Power Consumption
|
DC In : 16W / PoE : 18W
|
|
Dimensions
|
Folded : 22.3"x15.2"x6"
(566x385x152 mm)
Open : 18.3"x15.2"x23.1"
(466x385x588 mm)
|
|
Weight
|
12.3 lbs (5.6 kg)
|
