USB Document Camera Lumens DC-F20- 2K/1080p Full HD Resolution, USB Plug & Play; Zoom (up to 16x), Built-in Microphone
- 2K / 1080p Full HD
- USB Plug & Play
- Electronic Pan, Tilt and Zoom up-to 16x Total Zoom (via Software)
- > A3 Shooting Area
- Built-in Microphone
- 5 Year Warranty

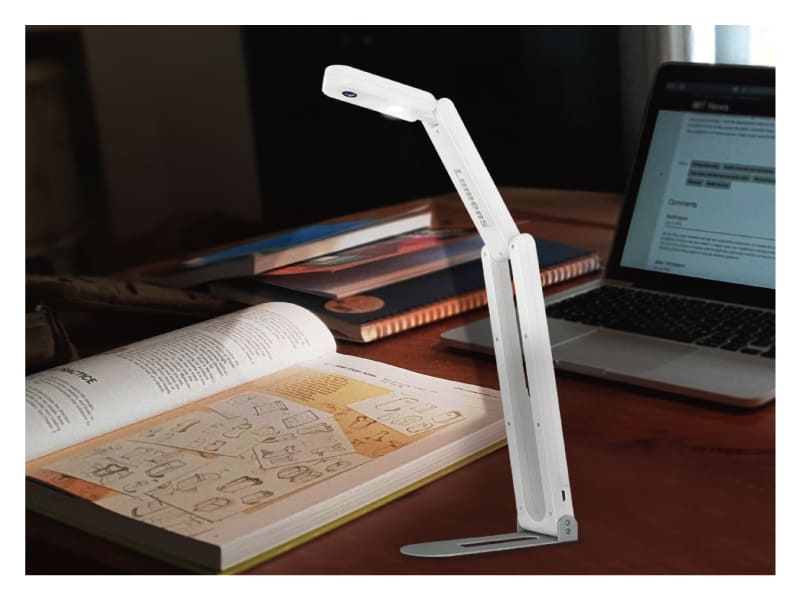

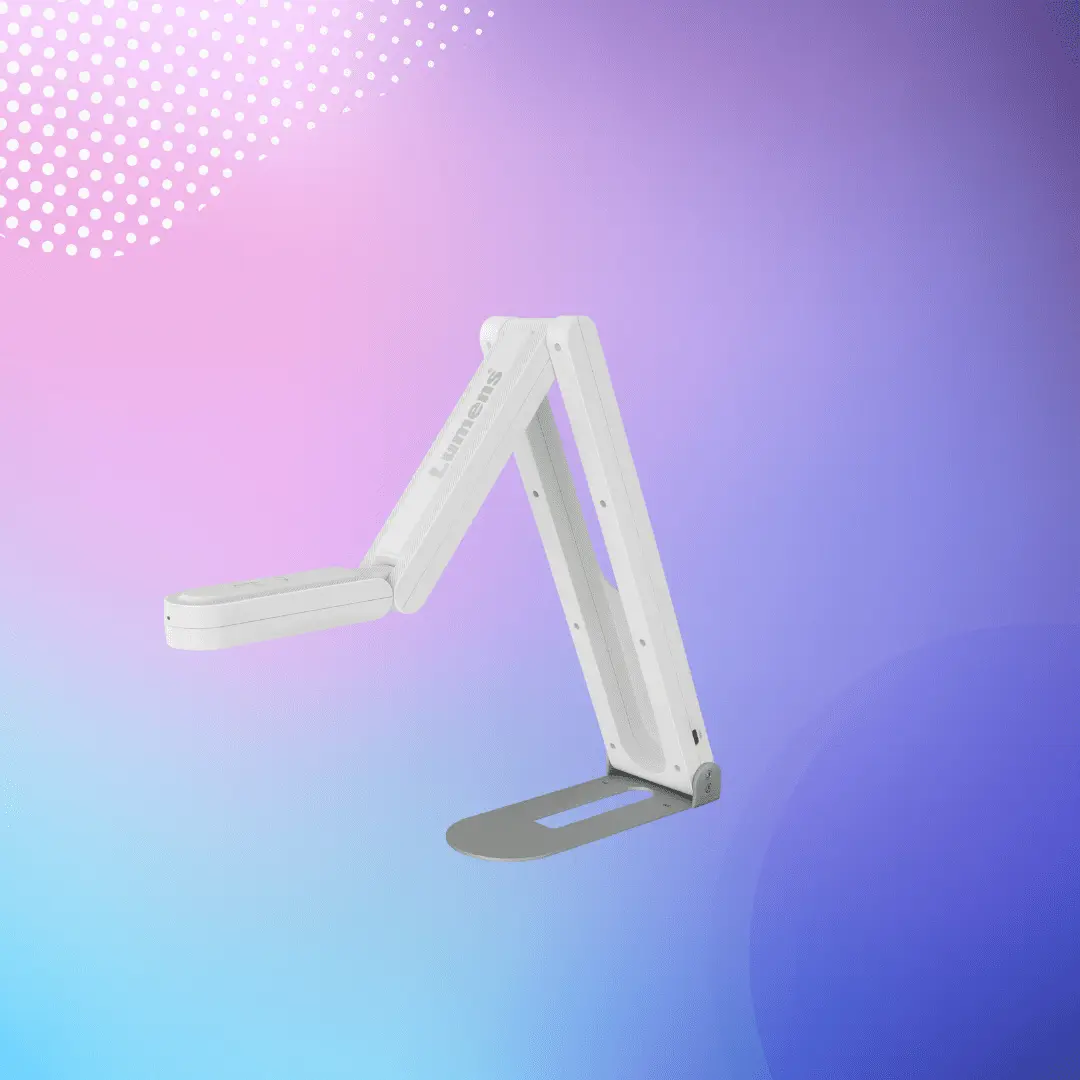

Lumens DC F20 – USB Document Camera
Lumens DC-F20 document camera captures bright and vivid colors HD/2K images and video. It is foldable, portable, and lightweight. Perfect for teachers and presenters, plug in the USB cable and it’s ready to go. DC-F20 works well with video conference software such as Zoom, Meet, Skype, or Teams. With the included Ladibug software, users can easily position and zoom the lens position, and highlight parts of the document. It is perfect for distance learning and live demonstrations.
Key Features
Grab & Go Design
The foldable and lightweight design makes DC-F20 very easy to carry. A portable demonstration tool, it’s perfect for teachers and business professionals.
Superb Image Quality
DC-F20 delivers vivid and colorful images. It is perfect for projection or product demonstrations with 1080p resolution and higher (up-to 2K).

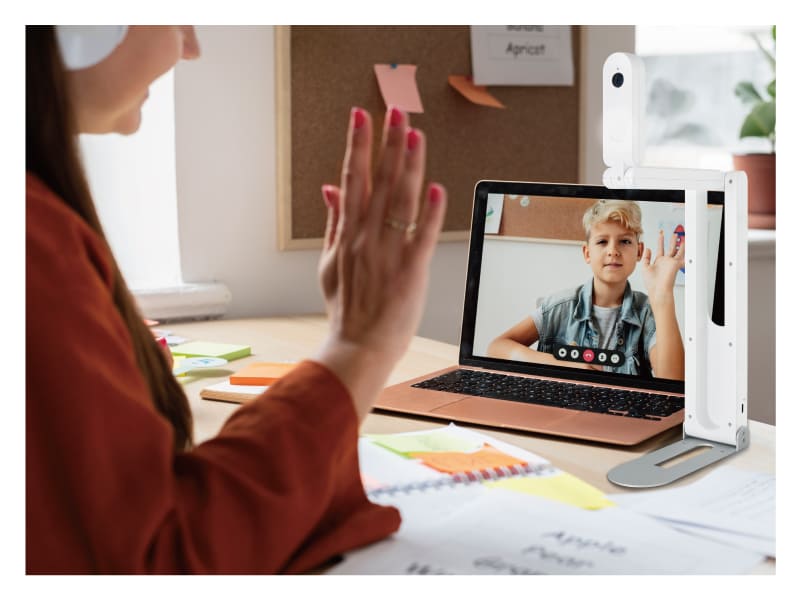

Dual Document Camera - Webcam Design
Equipped with one-touch image rotation, DC-F20 simply flips from use as a document camera to a webcam. It’s a great piece of technology for hybrid classrooms which combine in-class teaching with distance learning.
Three-Level LED Lighting as Fill Light
With a built-in light, DC-F20 can even be used in rooms with poor lighting. Adjust the level of lighting to illuminate documents or faces, when used as a webcam.
Collaboration Tool for Windows, MAC, and Chrome
USB Document Camera Lumens DC F20 Technical Specifications
|
PARAMETER
|
VALUE
|
|---|---|
|
Image Sensor
|
1/4" 5M CMOS
|
|
Output Resolution
|
2592x1944, 2560x1440, 1600x1200,
1920x1080,1280x720,1024x768,
960x540,640x480,640x360
|
|
Frame Rate
|
1080p / 720p 30fps
|
|
Digital Zoom
|
16x (Via Software)
|
|
Mechanical Zoom
|
6x
|
|
Total pixels
|
5MP
|
|
Shooting Area Max.
|
453mm×340mm
(17.8" x 13.4")
|
|
Power
|
USB Bus Power
|
|
Control
|
USB
|
|
Built-in Microphone
|
Yes
|
|
USB Image Transmission
|
USB 2.0 (480 Mbps)
|
|
Auto Tune
|
Yes, One Button for Optimization Image
|
|
Mask / Spotlight
|
Yes (Via Software)
|
|
Image Mode
|
Photo / Text
|
|
Video/Audio Recording
|
Yes (Via Software)
|
|
Free Software
|
Supports PC Windows 10, 8, 7, XP, Vista and Mac OSX, Chrome OS ; iOS, Android APP ; WIA & TWAIN interface
|
|
USB Video format
|
MJPEG / YUV
|
|
Pan
|
Yes
|
|
Freeze
|
Yes
|
|
Power Consumption
|
2.25W (Max.)
|
|
Dimensions (LxWxH)
|
Folded : 2.56" x 10.43" x 0.97"
(65 x 265 x 24.5 mm)
Open : 4.2" x 15" x 13.8" (65 x 175.1 x 392.5 mm) |
|
Weight
|
0.8 lbs (0.36 Kg)
|
|
Anti-Theft
|
Kensington Anti-Theft Lock Device
|
Download Brochure
